T Type Antenna-2.4G|46mm

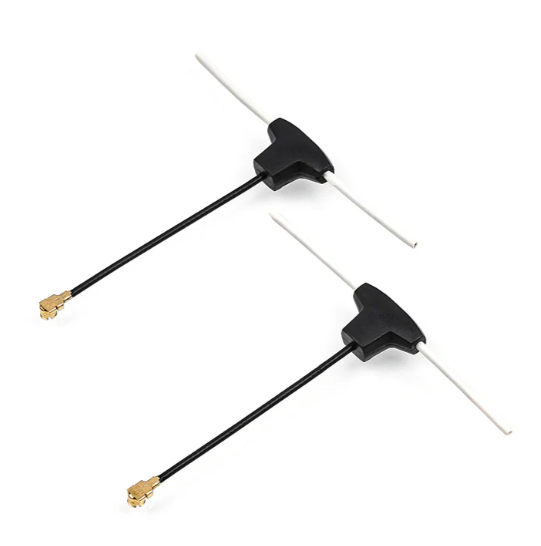

Dipole T Antenna (2.4GHz / 46mm)

The Dipole T Antenna is designed and manufactured by BETAFPV for 2.4GHz receivers. This antenna features an omnidirectional radiation pattern, providing stable signal reception regardless of aircraft orientation. An RF balun circuit is integrated inside the injection-molded rubber enclosure, ensuring optimal RF performance. Each antenna is individually tested with a frequency spectrograph to guarantee proper operation at the correct frequency.

Specifications

• Frequency: 2.4GHz
• Coaxial Cable Length: 46mm
• Antenna Width: 60mm
• Weight: 0.94g
• Connector: U.FL
• Gain: 2dBi
• VSWR: < 1.4 (2.4GHz version)

Compatibility & Notes

Compatible with any receiver that uses a U.FL connector.
Please ensure that the antenna frequency matches the receiver frequency. Although antennas may look similar externally, the internal balun circuit differs by frequency, and using an incorrect frequency antenna will result in significantly reduced performance.
