Oxbot Champ Racing Stack ICM42688 H743 60A OX32 FC+ESC Stack

Oxbot Champ Racing Stack ICM42688 H743 60A OX32 FC + ESC Stack

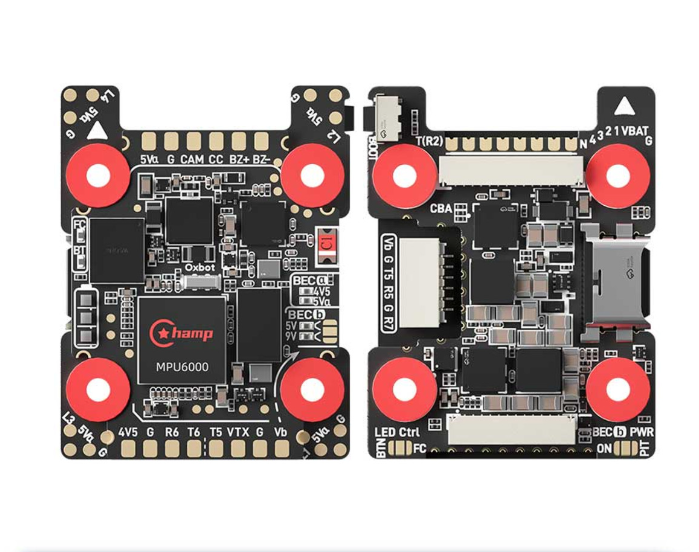

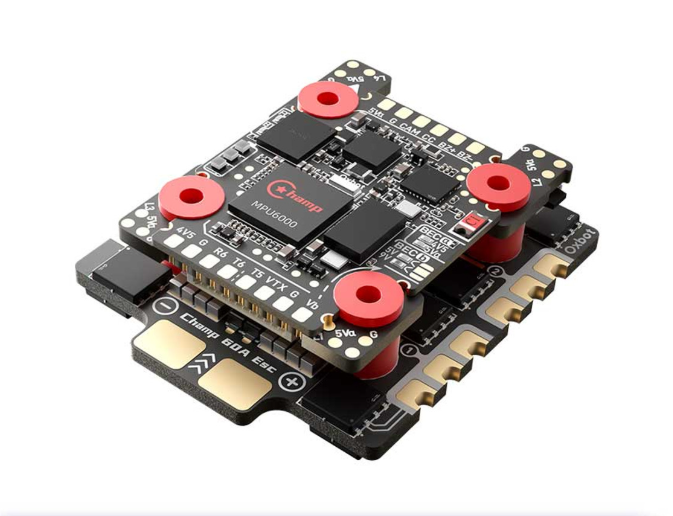

The Oxbot Champ Racing Stack is a high-performance flight controller and ESC combo designed for competitive FPV drone racing.
It features the latest ICM42688 gyro sensor and the powerful STM32H743 processor running at 480MHz, delivering ultra-responsive control and maximum reliability.
Optimized for top 10 racing motors, the stack comes with custom-tuned OX32 ESC firmware and is ready for HDZero or DJI digital video systems.

Key Features

• STM32H743 MCU running at 480MHz
• Equipped with the latest ICM42688 gyro sensor
• OX32 ESC firmware optimized for high-end racing motors
• Plug-and-play support for HDZero and DJI video systems
• Built-in BLE for wireless configuration via SpeedyBee app
• Compact 20x20mm layout (M3 mounting holes)
• Noise-resistant dual BEC: switchable 5V / 9V output
• 4-channel LED port for programmable strips
• 16MB onboard blackbox for logging

Specifications

• MCU: STM32H743 (480MHz)
• Gyro: ICM42688
• Input Voltage: 3S–6S LiPo (7V–25.2V)
• BEC Output: 5V or 9V switchable

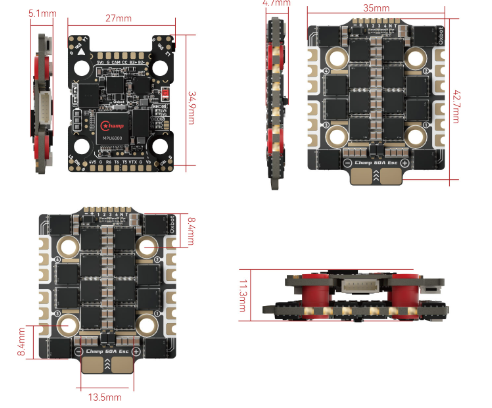

• Board Dimensions: approx. 34.9 x 27 x 5.1mm
• Mounting: 20x20mm (M3)
• Weight: approx. 6.7g

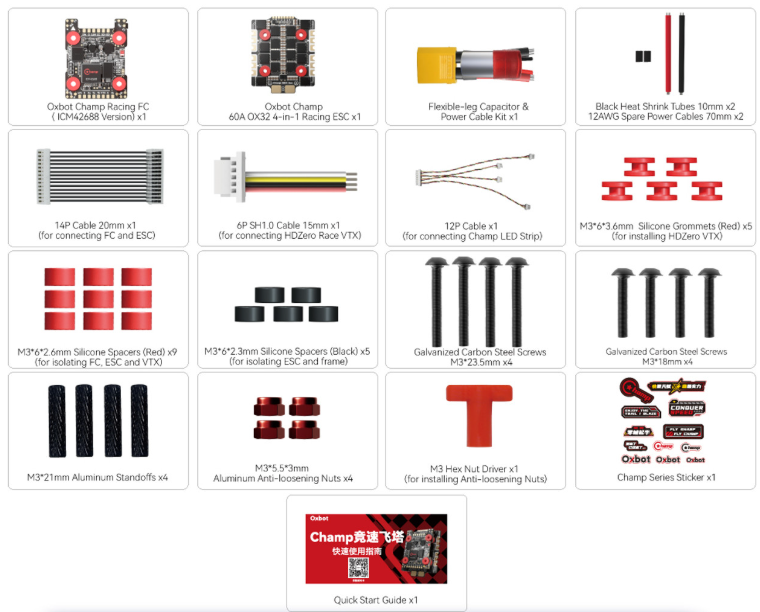

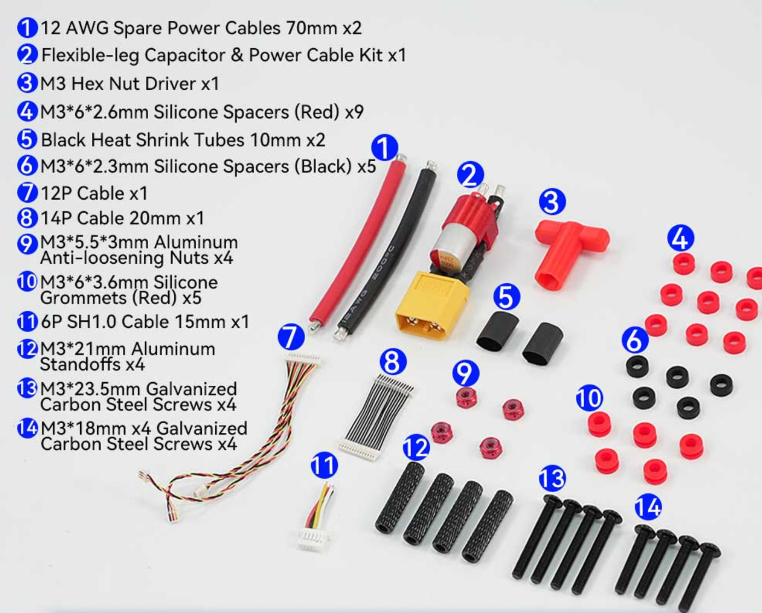

Included in the Package

• Oxbot Champ FC with ICM42688 gyro ×1

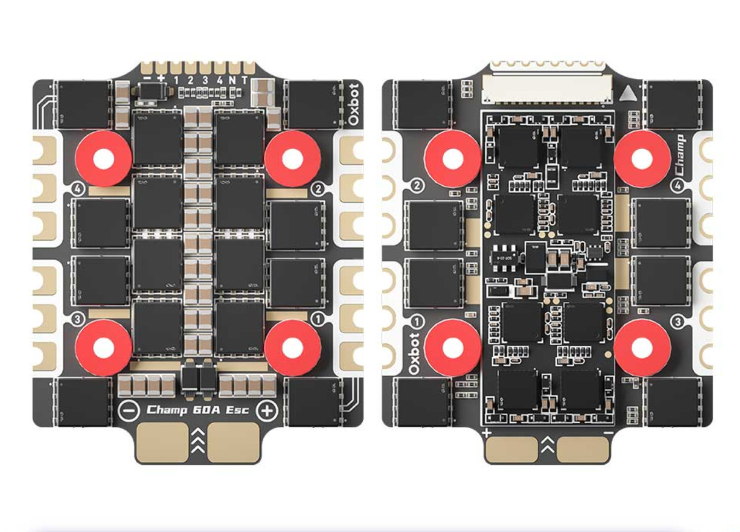

• 60A 4-in-1 OX32 ESC ×1
• FC-to-ESC wiring harness ×1
• HDZero-compatible video signal cable ×1
• ESC power cable with XT60 plug ×1
• Low ESR capacitor ×1
• Anti-vibration rubber dampers (soft mounts) ×4
• M3 plastic standoffs ×4
• Silicone wires × several
• ESC signal jumper wires ×1 set
• Mounting screws and nuts ×1 set
• Heat shrink tubing ×1
• User manual (English) ×1

With its balanced combination of power, reliability, and adaptability, the Champ Stack provides everything needed to compete at the highest level.
Its lightweight and space-saving design fits easily into most modern racing frames, making it a top-tier choice for serious pilots.

ESC Configuration

The OX32 ESC can be configured using the dedicated online tool “OX32 Configurator.”
You can adjust motor direction, PWM frequency, braking strength, and more.
Access the configurator here:

https://ox32.oxbot.com/
