Oxbot Champ 60A OX32 4-in-1 Racing ESC

60A OX32 4-in-1 ESC

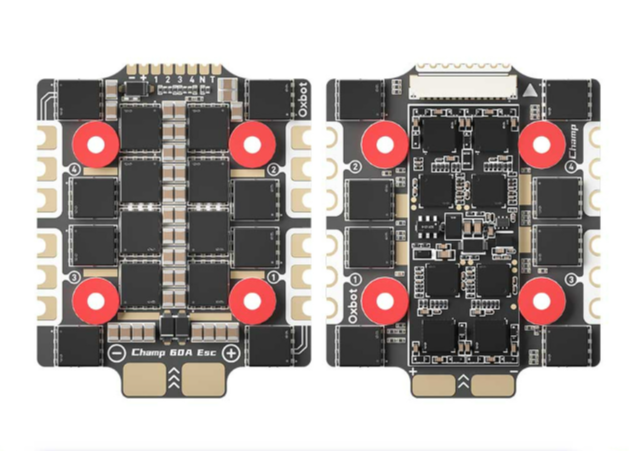

The OX32 4-in-1 ESC is a high-performance electronic speed controller designed for FPV racing drones.
With up to 60A continuous current capability, advanced signal stability, and optimized firmware, it ensures precise motor control and outstanding reliability under competitive conditions.

Key Features

• 4-in-1 layout for compact integration
• Supports up to 60A continuous current (80A burst)
• High-efficiency MOSFETs to reduce heat
• Customized BLHeli_32 firmware (OX32 tuned)
• Supports 2S–6S LiPo batteries
• Built-in current and voltage sensor (telemetry to FC)
• Compatible with DShot1200, PWM, and Multishot protocols
• Low-noise circuitry for clean signal transmission
• Fully compatible with digital systems like HDZero and DJI

Specifications

• Continuous Current: 60A (80A burst)
• Input Voltage: 2S–6S LiPo (7V–25.2V)
• Firmware: BLHeli_32 (custom OX32 version)

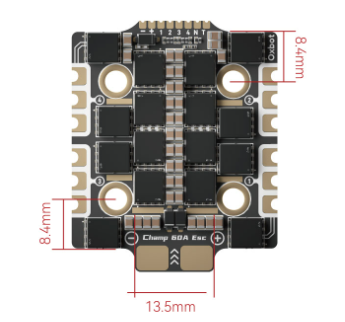

• Dimensions: approx. 34.9 x 27 mm (20x20mm mounting pattern, M3 holes)
• Weight: approx. 4.5g

Package Contents

• 60A OX32 4-in-1 ESC ×1
• Power cable (XT60 compatible) ×1
• Signal cable ×1
• Low ESR capacitor ×1
• Heat shrink tubing ×1
• Mounting hardware (screws and nuts)

ESC Configuration

The OX32 ESC can be configured using the dedicated online tool "OX32 Configurator."
You can adjust motor direction, PWM frequency, braking strength, and more. Access the configurator below:

https://ox32.oxbot.com/
