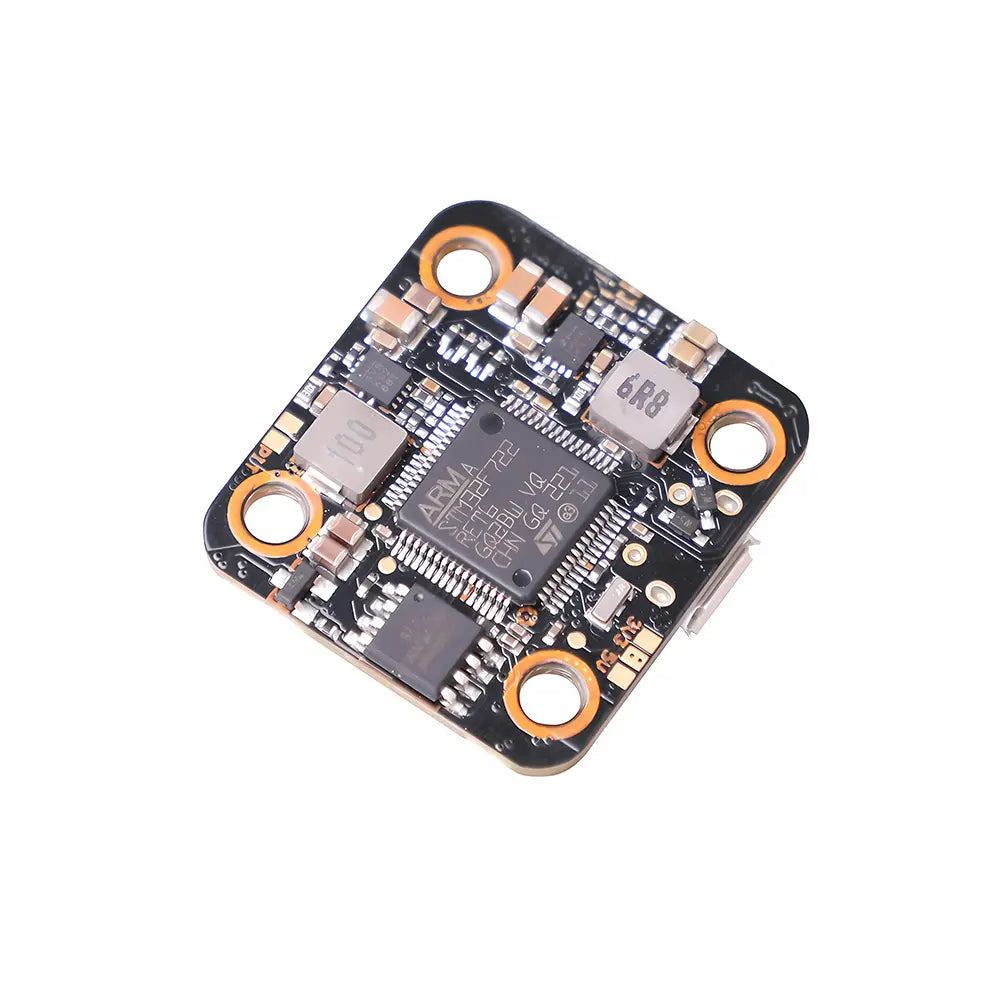

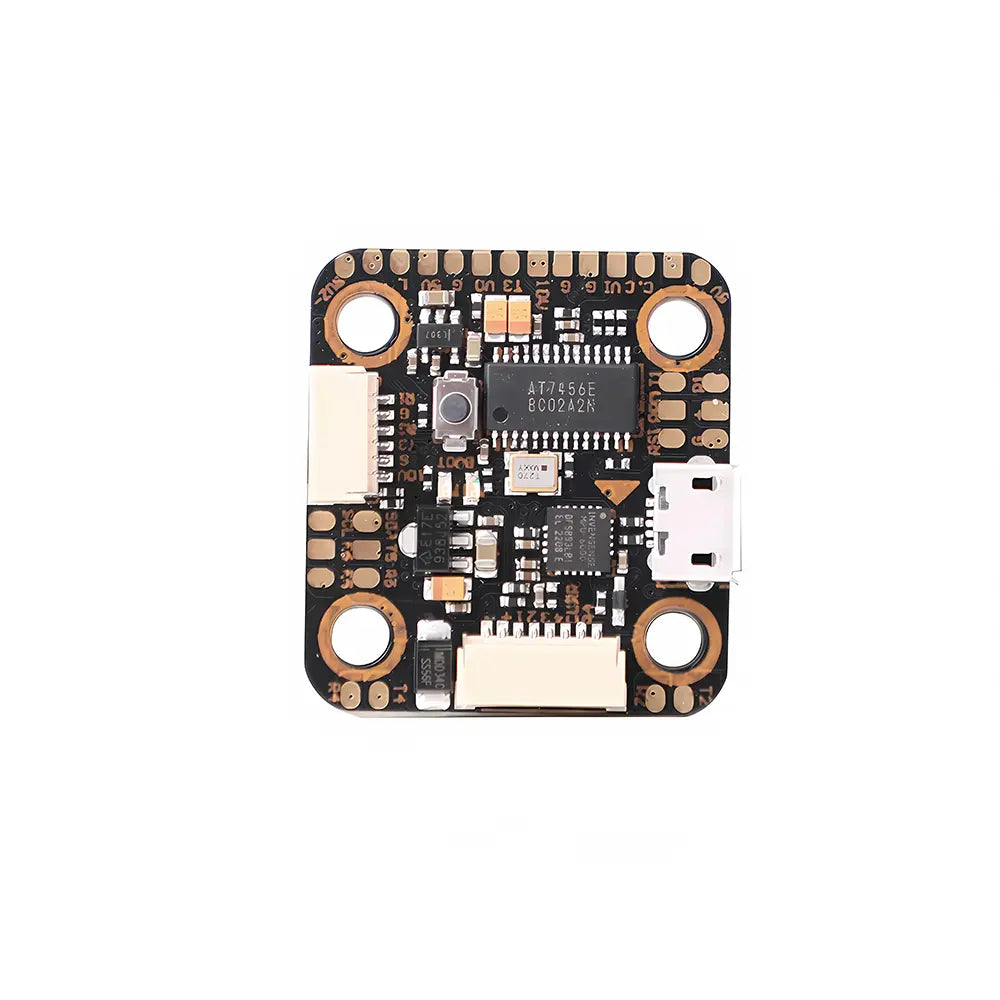

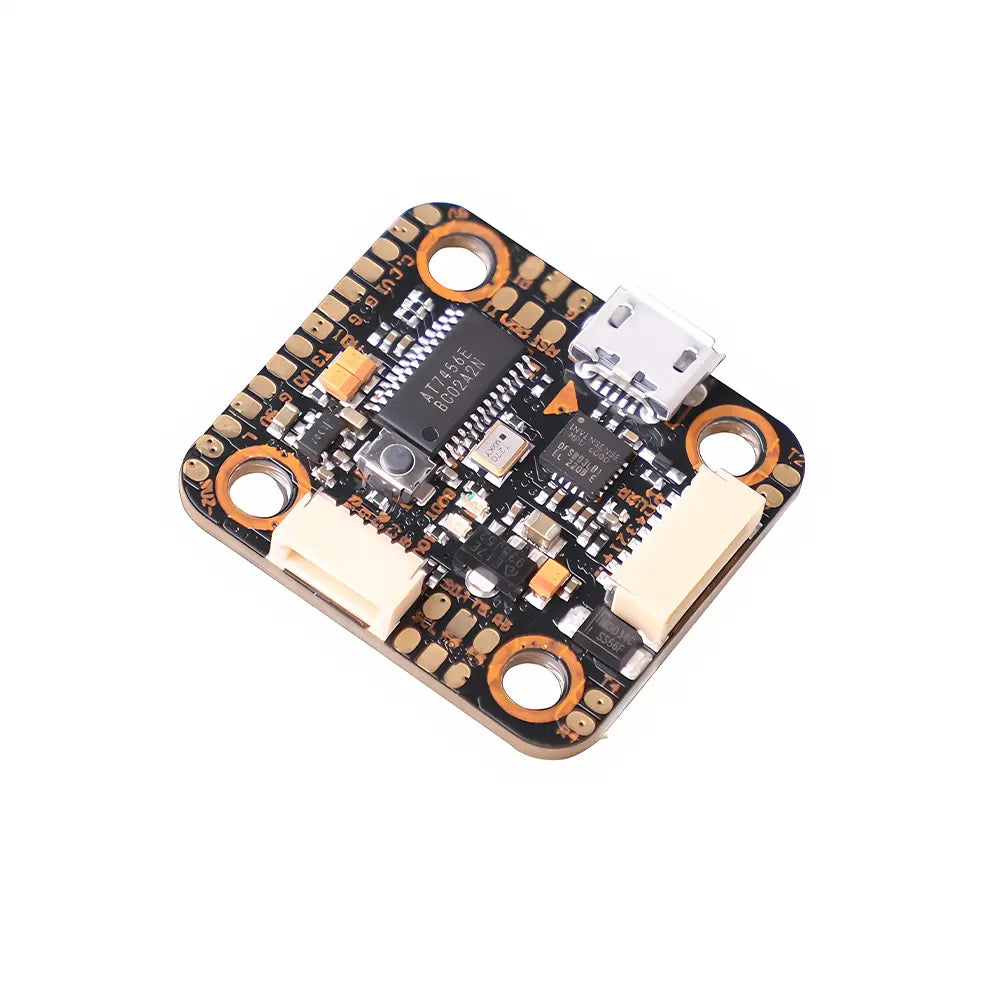

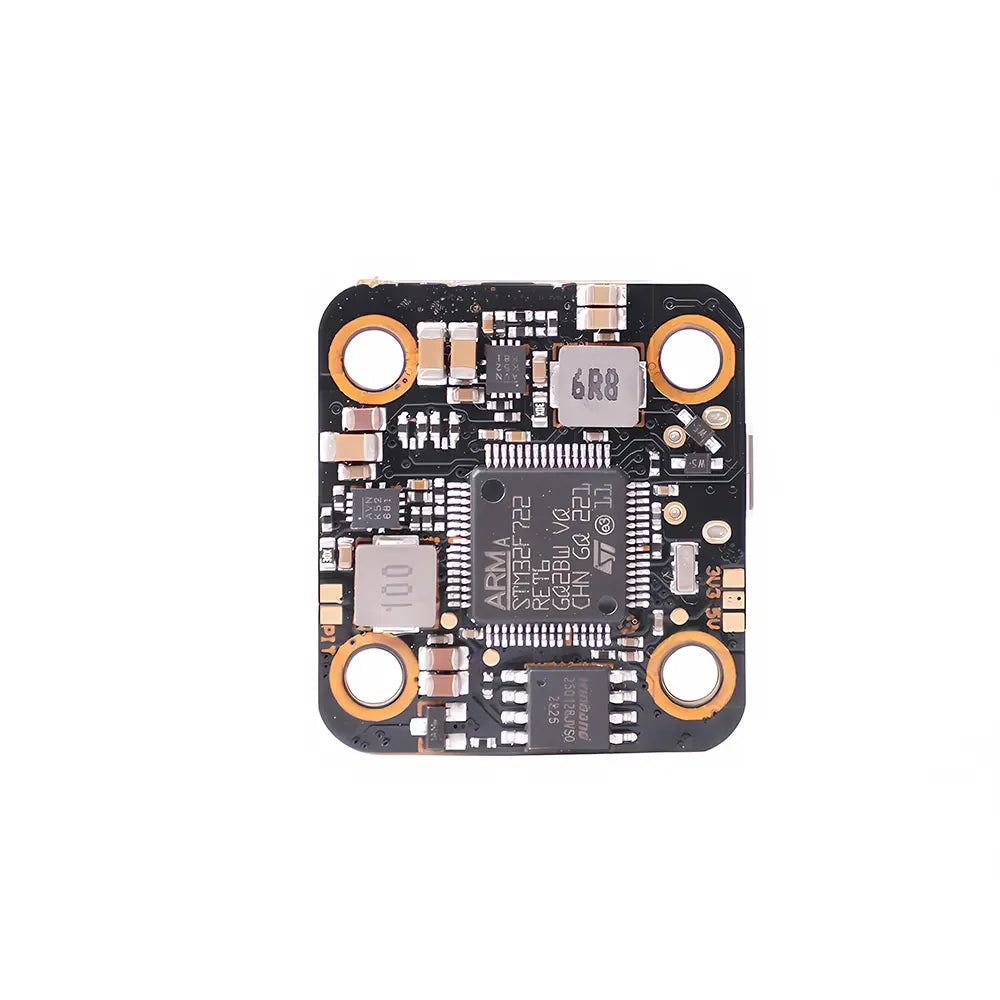

The MINI F7 HD 20x20 Flight Controller by T-HOBBY is a high-performance, compact flight controller built for modern FPV drones. Featuring the noise-resistant MPU6000 gyro and a powerful F7 processor, it delivers precise flight control and reliable performance in both racing and freestyle scenarios.
This board is designed with HD video transmission in mind, fully compatible with HDZero and Walksnail systems. Despite its small 20x20mm mounting pattern, it offers excellent connectivity and flexibility for tight builds.
Gyro: MPU6000 (renowned for low noise and stable performance)
Firmware Compatibility: Betaflight / INAV
Mounting Pattern: 20mm x 20mm
USB Port: Micro USB (Not Type-C)
Input Voltage: 3–6S LiPo
HD VTX Support: Compatible with HDZero, Walksnail, and similar systems
Key Features: Powerful F7 processor, compact 20x20mm form factor, robust stability from MPU6000
