HDZero Race V3 VTX

Product Name: HDZero Race V3 VTX

Description:
The HDZero Race V3 VTX is the 3rd generation digital video transmitter designed for FPV racing. With a wide input voltage range starting at 4V (up to 12V), it can be powered by most FC’s 5V 1.5A regulators or direct 12V HD VTX ports. The compact form factor (28×32×5mm) and light weight (5.5g) help improve durability and reduce the build’s weight by matching many FCs’ width.

The antenna is firmly secured by a metal bar and screws. No soldering is needed—just plug the harness into a compatible HD-ready flight controller.

It uses a 1.6mm thick PCB for improved durability (compared to 1.0mm on the Whoop Lite VTX), large component packaging for electrical stability, glue-coated small components for shock resistance, and includes reverse polarity protection.

Supported Resolutions:

• 540p90
• 720p60
• 1080p30 (Switchable 25mW / 200mW on 5.8GHz)

Specifications:

• Model: HDZero Race V3 (SKU: HDZ3143)
• Frequency: 5.725–5.850GH
• Video Interface: 4-lane MIPI CSI YUV422
• Video Connector: 20 Position 0.30mm Pitch
• Mounting: 20×20mm M4 with rubber grommets
• Dimensions: 32×28×5mm
• Weight: 5.5g
• Power Input: 4V–12V

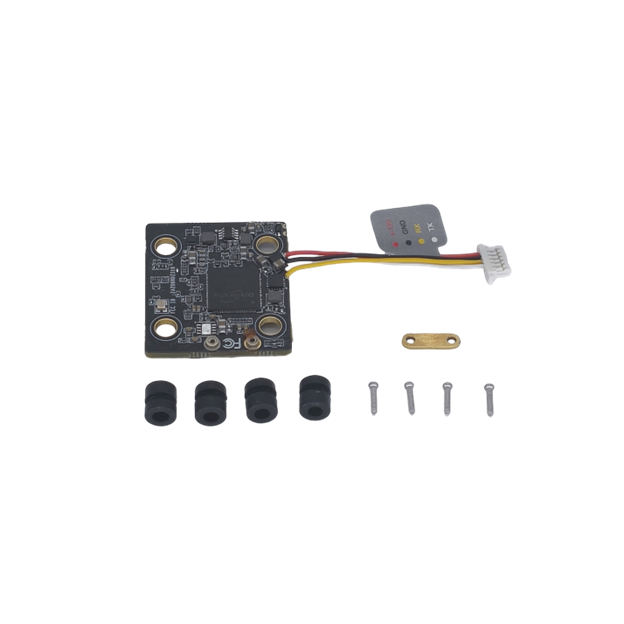

Included in the box:
 - VTX-R3 board with pre-soldered harness ×1
 - Rubber Grommets (M4 to M3) ×4
 - u.FL Antenna Retention Screws ×4
