Foxeer

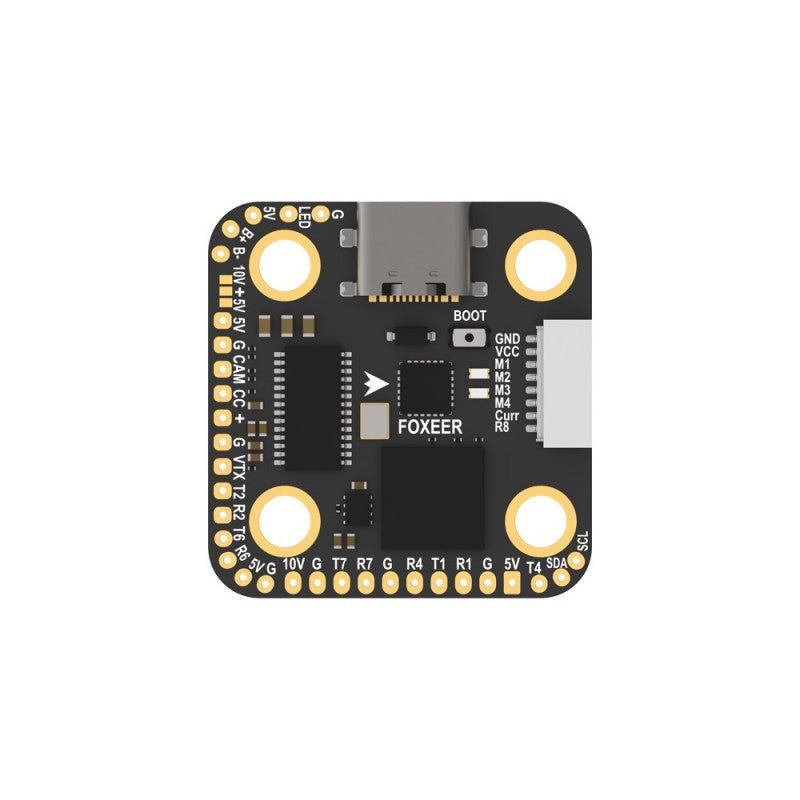

Foxeer H7 Mini MPU6000 FC 8S Dual BEC Barometer

Foxeer H7 Mini MPU6000 FC 8S Dual BEC Barometer

Regular price ¥16,100 JPY
Regular price Sale price ¥16,100 JPY
Sale Sold out

The Foxeer H7 Mini MPU6000 FC is a high-performance flight controller compatible with up to 8S input. It features dual BEC outputs (5V 3A and 10V 2A) to provide stable power for peripherals such as VTXs and cameras. Equipped with the reliable MPU6000 gyro sensor, it offers excellent vibration resistance and stable performance, making it suitable for aggressive flying. Additional features include a built-in barometer and 16MB blackbox for altitude control and flight data logging. Its compatibility with X8 motor setups makes it a versatile choice for racing, freestyle, or larger drone builds.

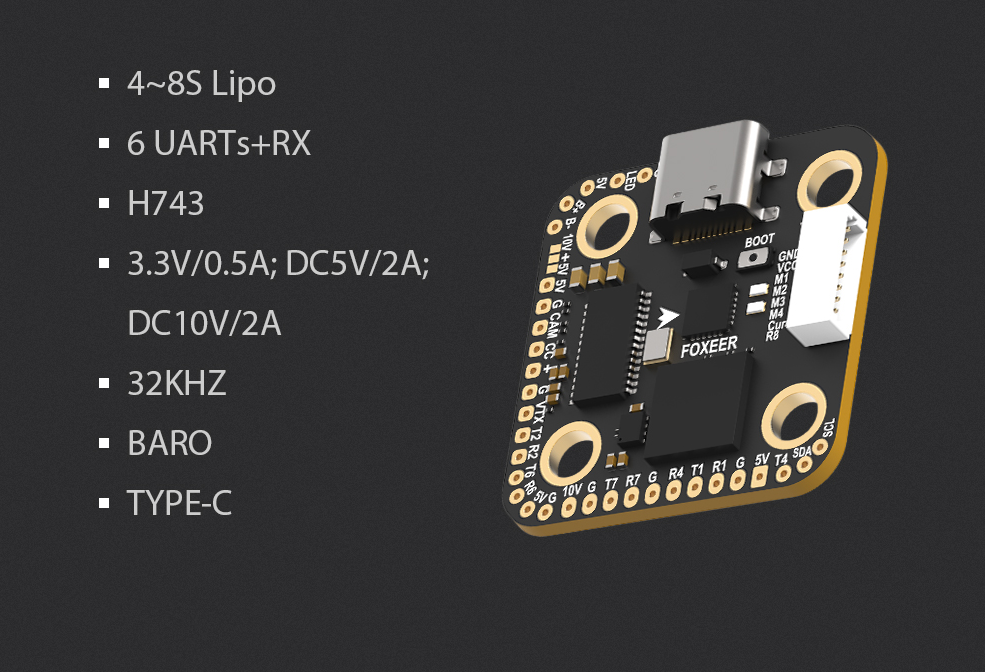

Key Specifications:

  • MCU: STM32H743

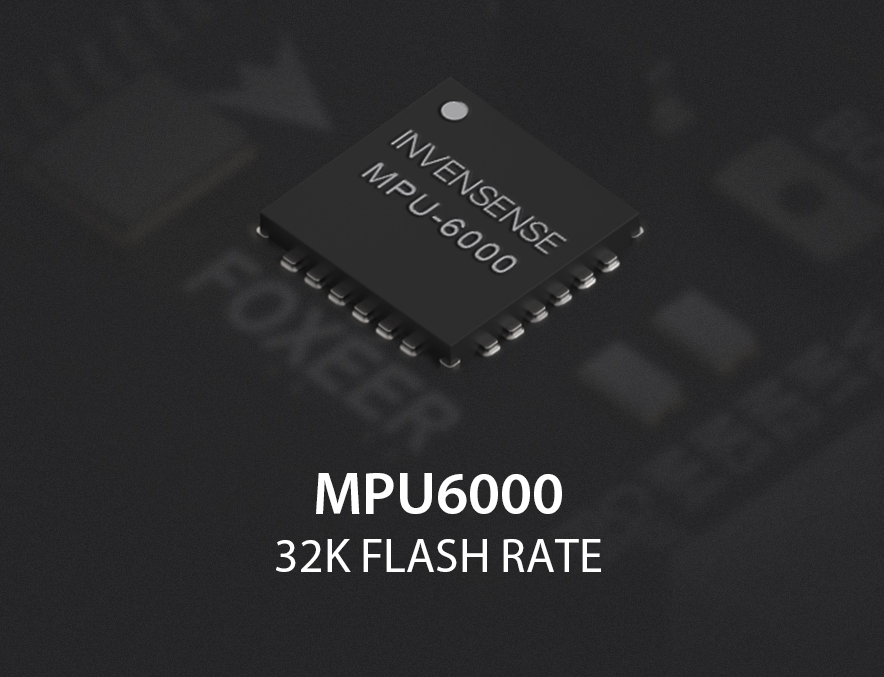

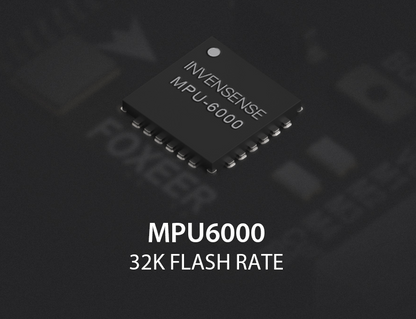

  • Gyro: MPU6000
  • Input Voltage: 3–8S (up to 36V)
  • BEC Output: 5V/3A & 10V/2A
  • Blackbox: 16MB
  • Sensor: Built-in Barometer

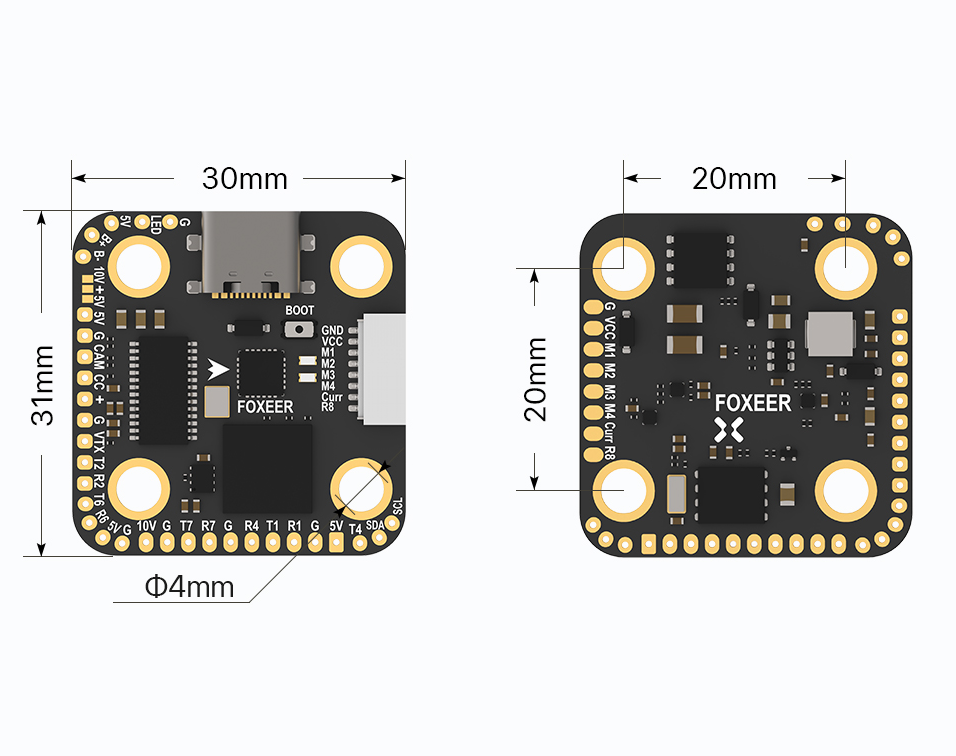

  • Size: 35x35mm (30.5x30.5mm mounting)
  • Weight: approx. 8g
  • Firmware: BETAFPV H743 or FOXYH743
  • Support: X8 configuration (8 motors)
