ELRS Nano TX V2 Module(ELRS2.4G)

Nano TX V2 Module

The Nano TX V2 Module is packed with powerful upgrades to deliver an unrivaled pilot experience. Featuring the innovative T-LED antenna, its flicker frequency visually indicates the signal transmitting status and module connection state. With up to 1W / 2W output power, it provides a stable and reliable link for FPV racing, long-range flights, and professional aerial photography. It seamlessly integrates with Backpack and supports custom button functions, while the 1804 cooling fan ensures smooth and stable operation even at high power output. Unleash your full potential with the Nano TX V2 Module.

Key Features

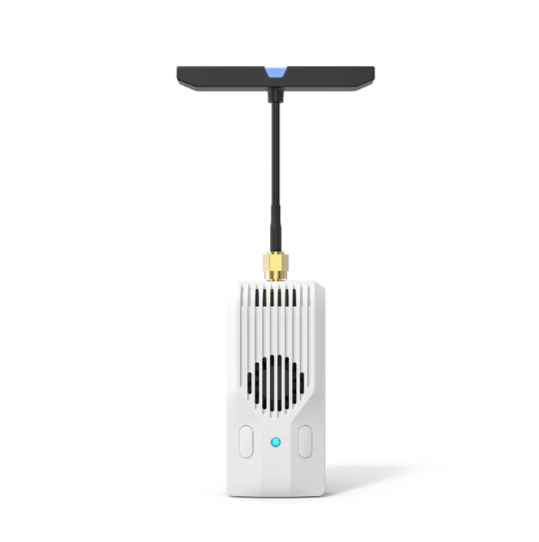

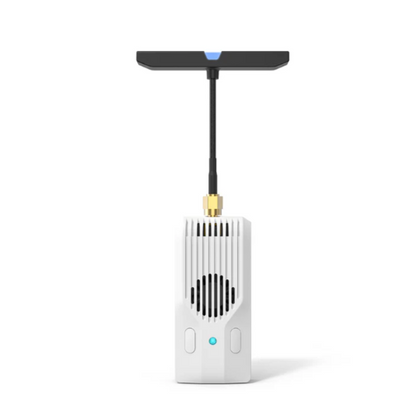

• First-Ever T-LED Antenna
  Equipped with a built-in LED display, allowing pilots to easily monitor signal transmitting and receiving status directly from the radio transmitter.
• Multiple Frequency Versions
  Available in three versions: 2.4GHz (maximum 1W output) and 915MHz / 868MHz (maximum 2W output). Supports a maximum packet rate of F1000 / 200Hz.
• Integrated TCXO
  Minimizes frequency deviation for stable performance and effectively reduces signal interference.
• Advanced Cooling System
  Featuring an optimized internal airflow channel, heat sink, and a high-speed 1804 cooling fan, it efficiently dissipates heat even under high power output to maintain a stable RF link.
• Backpack & Custom Button Support
  Based on ExpressLRS V3.3, it supports Backpack and custom button functions, enabling pilots to connect external devices and configure buttons according to personal preferences.

Specifications

• Item: BETAFPV Nano TX V2 Module | ELRS 2.4GHz / 915MHz / 868MHz
• Weight: 28g
• Color: White
• Antenna Connector: RP-SMA (2.4GHz), SMA (915/868MHz)
• RF Power (2.4GHz): 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW
• RF Power (915/868MHz): 10mW / 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW / 2000mW
• Packet Rate (2.4GHz): 50Hz
